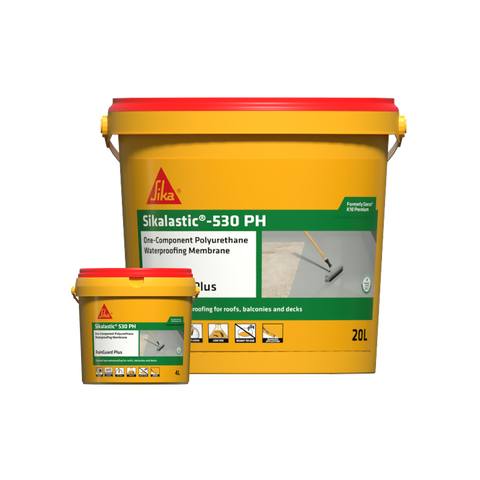

Sikalastic®-530 PH

Sikalastic®-530 PH

Polyurethane-containing liquid applied membrane

Sikalastic®-530 PH is a liquid-applied polyurethane-containing elastomeric seamless waterproofing membrane. Moisture-cured characteristics ensure that further works can be carried out at a shorter time once the membrane has dried out.

  • Liquid applied.
  • Ready-to-use
  • Rapid curing
  • Flexible
  • Seamless application
  • UV resistant

Product Data Sheet Show all documents

Usage

  • All types of roofs, balconies and decks
  • Roofs (Requires good slope; for metal substrates, the use of corrosion‑protection primer is recommended)
  • Waterproofing of external areas such as suspended structures

Advantages

  • Liquid applied.
  • Ready-to-use
  • Rapid curing
  • Flexible
  • Seamless application
  • UV resistant


Packaging

4L pail
20L pail

Colour

Grey, White

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Low VOC as tested in accordance with the relevant ISO 16000, EN 16516, CDPH 01350, and ASTM D2369 testing standards
Product Information

Shelf Life

12 months in unopened containers

Storage Conditions

Stored in a cool dry place

Density

~1.3 kg/L
System information

System Structure

Coating SystemConsumption
PrimerSikalastic® -500 Acrylic Primer PH≥0.3 kg/m2
Base CoatSikalastic® -530 PH≥1.4 kg/m2 (Minimum for 2 Coats)
Reinforced System
PrimerSikalastic® -500 Acrylic Primer PH≥0.3 kg/m2
Base CoatSikalastic® -530 PH≥1.4 kg/m2 (Minimum for 2 Coats)
Fiber mesh≥80 gsm
Base CoatSikalastic® -530 PH≥1.0 kg/m2
Technical Information

Shore A Hardness

~64 (ASTM D2240)

Crack Bridging Ability

max 3.2mm (10cycles) (ASTM C1305)

Resistance to Water Penetration

Nil (Tested up to 5 Bars) (DIN 1048)

Elongation at break

≥550% (ASTM D412)

Application

Application steps

SUBSTRATE PREPARATION

  • All surfaces to be treated must be as clean and dry as possible. It may be necessary to wire brush areas where dirt or scale cannot be removed, with a stiff broom. Moisture is recommended to be <4% pbw.
  • Check surface for cracks, splits, flashing, coverings,
  • etc. where cracks exceed 1mm, crack must be re-paired. It also recommended to use fabric matting, followed by a liberal application of Sikalastic®-530 PH.
  • For reduction in blistering and better adhesion to concrete substrate, prime area with Sikalastic® -500 Acrylic Primer prior to application.
  • Proper slope to drain must be provided for the system as to prevent extensive ponding on Sikalastic®-530 PH

APPLICATION

  1. Sikalastic®-530 PH should be applied directly from the pail.
  2. Apply one coat Sikalastic®-530 PH to the whole area and allow to cure, approx. 2-4 hours.
  3. Apply the 2nd coat of Sikalastic®-530 PH in a perpendicular direction to 1st coat.
  4. All joints on floors should preferably be treated with additional coat of Sikalastic®-530 PH and appropriate joint solutions (e.g. Sikaflex®)
  5. Ponding test should be carried out at least 48 hours after the final application of Sikalastic®-530 PH
