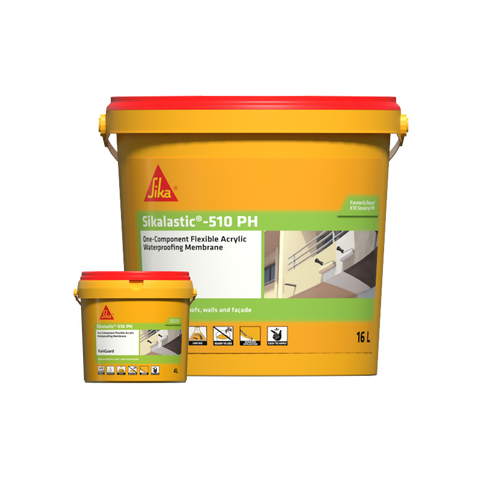

Sikalastic®-510 PH

Sikalastic®-510 PH

RAINGUARD - Styrene Acrylic Liquid Applied Membrane for Walls, Facade, and Sloped Roofs

Sikalastic®-510 PH is a liquid applied membrane for walls, facades, and sloped roofs. Sikalastic®-510 PH is also designed to be reinforced with fabric/mesh for UV-exposed, non-ponding, positive-side waterproofing

  • Ready-to-use
  • Water-based
  • Flexible & able to bridge cracks
  • Low VOC
Product Data Sheet Show all documents

Usage

For waterproofing of:
  • Walls
  • Facades
  • Sloped roofs

Advantages

  • Ready-to-use
  • Water-based
  • Flexible & able to bridge cracks
  • Low VOC

Packaging

4L, 16L Pail

Colour

Grey, White, Beige

Product Details

Product Information

Shelf Life

12 Months from date of manufacture if stored in the original unopened container

Storage Conditions

Store in cool, dry, and shaded place with temperatures ranging from +5°C to +35°C
System information

System Structure

Primer

Depends on substrate type & conditions (Please consult Technical Team for further information)

Base Coat (1st Layer)

Sikalastic®-510 PH (~0.3 Kg/m2 to 0.6 Kg/m2)

Base Coat (2nd Layer)Sikalastic®-510 PH (~0.3 Kg/m2 to 0.6 Kg/m2)
  • Additional coats could be applied if required by the stakeholders
  • Sikalastic®-510 PH is designed to receive reinforcement if necessary

Application

Consumption

Consumption

8 m2/4L at 0.6 Kg/m2


Application steps

SUBSTRATE QUALITY

  • The substrate must be sound and free from irregularities, sharp projections, loose particles, oil, grease, coating, moss, mold, and any foreign matter
  • Surface must have sufficient slope to avoid water ponding
  • Any voids or potholes must be filled with approved repair material (e.g. Lanko®, SikaTop®)
  • The area must be dry.
  • If the surface is cementitious, it must be sufficiently cured.

APPLICATION

Priming:

  • Please consult with technical team for primer layer. Generally:
  • For old concrete, it is recommended to use approved Sikalastic® or Davco® primer for acrylic liquid applied membranes
  • For steel, it is recommended to use approved Sikalastic® Metal Primer

Application:

  1. Stir Sikalastic®-510 PH well prior to use.
  2. Once the substrate is prepared, spread Sikalastic®-510 PH onto the substrate using roller, brush, or airless spray.
  3. Allow the previous coat to dry prior to application of the next coat.
  4. Apply the next coat of Sikalastic®-510 PH. Add additional coats if needed and if reinforced.
