Sika® Injection-201 CE

Elastic PUR-Injection resin for permanent watertight sealing

Sika® Injection-201 CE is a very low viscous, elastic and solvent-free polyurethane injection resin. In contact with water, a uniform, closed and therefore watertight pore structure forms, which is elastic and flexible.

  • Permanently elastic, can absorb limited movements
  • No shrinkage in subsequent dry conditions
  • Due to its low viscosity it can penetrate into cracks >0.2 mm in width
  • Cured Sika® Injection-201 CE is inert and chemically-resistant
  • Solvent-free
  • In cold temperatures (< +10°C) Sika® Injection-201 CE can be accelerated using Sika® Injection-AC20
  • Can be injected as a one component system
Product Data Sheet Show all documents

Usage

  • Sika® Injection-201 CE is used for permanent watertight sealing with some flexibility to absorb limited movement, in dry, damp or water-bearing cracks and joints in concrete, brickwork and natural stone
  • Sika® Injection-201 CE can be used for the injection of the SikaFuko®-System (non re-injectable!)
  • For use in water-bearing cracks under hydrostatic pressure, preliminary injection shall be made with Sika® Injection-101 RC


Advantages

  • Permanently elastic, can absorb limited movements
  • No shrinkage in subsequent dry conditions
  • Due to its low viscosity it can penetrate into cracks >0.2 mm in width
  • Cured Sika® Injection-201 CE is inert and chemically-resistant
  • Solvent-free
  • In cold temperatures (< +10°C) Sika® Injection-201 CE can be accelerated using Sika® Injection-AC20
  • Can be injected as a one component system

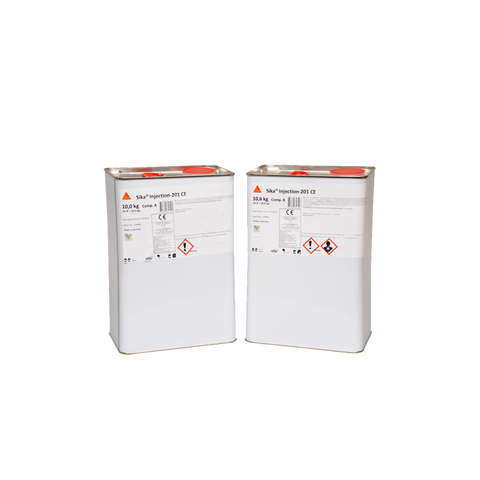

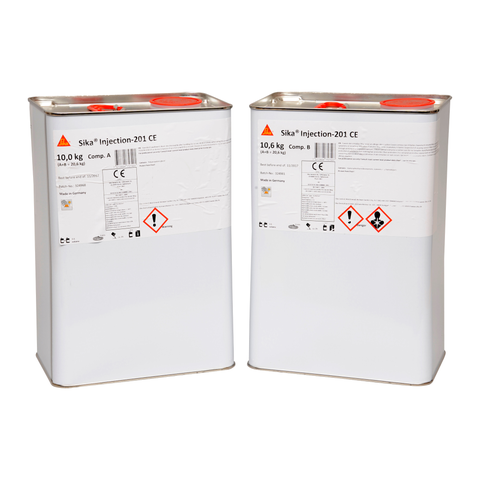

Packaging

Part A10 kg

Part B

10.6 kg

TOTAL 20.6 kg

Colour

Part Acolourless

Part B

brown

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • German KTW drinking water certificate
  • Concrete injection for ductile filling of cracks, voids and interstices (D) according to EN 1504-5:2004, Declaration of Performance 35859175, certified by notified factory production control certification body 0761 and provided with the CE marking.
Product Information

Chemical Base

Water reactive 2-part polyurethane resin, solvent free

Shelf Life

36 months from date of production if stored properly in undamaged, unopened, original sealed packaging.

Storage Conditions

Dry storage at temperatures between +5 °C and +35 °C. Protect from direct sunlight and humidity.

Density

Part A

Part B

~1.00 kg/l

~1.07 kg/l

All density values determined at +20 °C

Viscosity

~100 mPa·s (mixture, +20 °C)

(ISO 3219)
Technical Information

Shore A Hardness

~43 (7 days)

(EN 868)

Modulus of Elasticity in Flexure

~2 MPa(ISO 527-1)

Application

Application Information

Mixing Ratio

Part A:Part B 1:1 parts by volume

Reaction time table Sika® Injection-201 CE
(ISO 9514)

Material Temperature
Dosage*+5 °C+10 °C

+20 °C

0.0 %

~180 min

~180 min~135 min

0.5 %

~60 min

~55 min~38 min

1.0 %

~29 min

~32 min~24 min
2.0 %~16 min~17 min~13 min
3.0 %~13 min~14 min~10 min
5.0 %~9 min~7 min~5 min

*Dosage of Sika® Injection-AC20 in % by weight of Sika® Injection-201 Comp. A


The given data are laboratory parameters and may deviate depending on the object and conditions on site.

Ambient Air Temperature

+5°C min. / +35°C max.

Substrate Temperature

+5°C min. / +35°C max.
Application steps

SUBSTRATE PREPARATION

Surfaces of cavities and cracks need to be clean, free of loose particles, dust, oil and any other bond-breaking substances. Any dirt must be blown out by compressed air.

MIXING

Empty parts A and B into a mixing vessel and mix slowly and thoroughly for at least 3 min (max. 250 rpm) until homogeneous, observing the safety precautions. The containers are supplied according to the required mixing ratio of 1 : 1 parts by volume.
Partial quantities can be measured out into separate vessels.
After mixing, pour the material into the pump’s feed container, stir briefly and use within the pot life.
If the substrate and/or ambient temperatures are < +10°C, Sika® Injection-AC20 can be added to accelerate the reaction time.



CLEANING OF TOOLS

Clean all tools and application equipment according to the Product Data Sheet for the Sika®Injection Cleaning System
