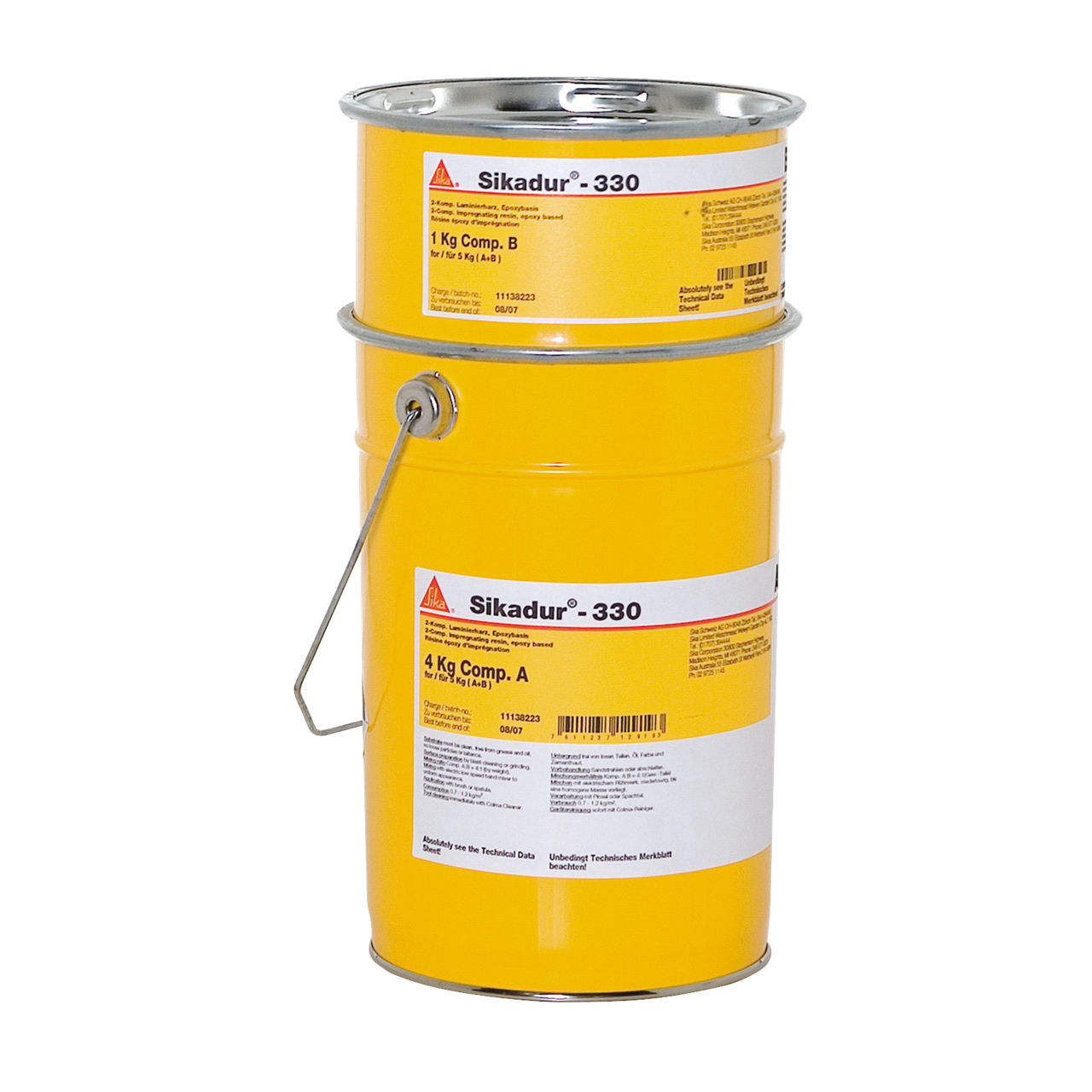

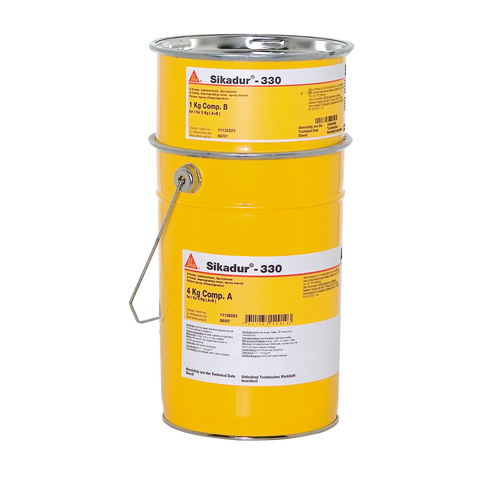

Sikadur®-330
Sikadur®-330 is a 2-component, thixotropic epoxy based impregnating resin and adhesive.
- Easy mix and application by trowel and impregnation roller
- Manufactured for manual saturation methods
- Excellent application behaviour to vertical and overhead surfaces
- Good adhesion to many substrates
- High mechanical properties
- No separate primer required
Usage
Sikadur®-330 is used as:- Impregnation resin for SikaWrap® fabric reinforcement for the dry application method
- Primer resin for the wet application system
- Structural adhesive for bonding Sika® CarboDur® plates to even surfaces
- Structural Resin for Bonding Near Surface Mounted CFRP
Advantages
- Easy mix and application by trowel and impregnation roller
- Manufactured for manual saturation methods
- Excellent application behaviour to vertical and overhead surfaces
- Good adhesion to many substrates
- High mechanical properties
- No separate primer required
Packaging
| 5 kg (A+B) | Pre-batched unit |
Colour
Component A: white paste
Component B: grey paste
Components A + B mixed: light grey paste
Product Details
ENVIRONMENTAL INFORMATION
- Conformity with LEED v4 MRc 4 (Option 2): Building Product Disclosure and Optimization - Material Ingredients
- Conformity with LEED v2009 IEQc 4.1: Low-Emitting Materials - Adhesives and Sealants
APPROVALS / STANDARDS
- Complies to Specification of Bonding CFS, DPWH Item 416
- Complies to ASTM C881, Type I, Type IV, Grade 3
- Avis Technique N° 3/16-875 (annule et remplace N° 3/10-669) Sika® CarboDur®, SikaWrap®
- Adhesive for structural bonding tested according to EN 1504-4, provided with the CE-mark
Chemical Base
Epoxy resin
Shelf Life
24 months from date of production
Storage Conditions
Store in original, unopened, sealed and undamaged packaging in dry conditions at temperatures between +5 °C and +30 °C. Protect from direct sunlight.
Density
| 1.30 ± 0.1 kg/l (component A+B mixed) (at +23 °C) |
Viscosity
Shear rate: 50 /s
| Temperature | Viscosity |
+10 °C | ~10 000 mPas |
+23 °C | ~6 000 mPas |
| +35 °C | ~5 000 mPas |
System Structure
Substrate primer - Sikadur®-330.
Impregnating / laminating resin - Sikadur®-330.
Structural strengthening fabric - SikaWrap® type to suit requirements.
Modulus of Elasticity in Flexure
| ~ 3 800 N/mm2 (7 days at +23 °C) | (DIN EN 1465) |
Tensile Strength
| ~ 30 N/mm2 (7 days at +23°C) | (ISO 527) |
Tensile Adhesion Strength
| Concrete fracture (> 4 N/mm2) on sandblasted substrate | (EN ISO 4624) |
Coefficient of Thermal Expansion
| 4.5 × 10−5 Per °C (Temperature range −10 °C − +40 °C) | (EN 1770) |
Glass Transition Temperature
Curing time | Curing temperature | TG |
30 days | +30 °C | +58 °C |
Heat Deflection Temperature
Curing time | Curing temperature | HDT |
| 7 days | +10 °C | +36 °C |
| 7 days | +23 °C | +47 °C |
| 7 days | +35 °C | +53 °C |
Resistant to continuous exposure up to +45 °C.
Service Temperature
–40 °C to +45 °C
Application
Mixing Ratio
Component A : component B = 4 : 1 by weight
When using bulk material the exact mixing ratio must be safeguarded by accurately weighing and dosing each component.
Ambient Air Temperature
+10 °C min. / +35 °C max.
Dew Point
Beware of condensation.
Substrate temperature during application must be at least 3 °C above dew point.
Substrate Temperature
+10 °C min. / +35 °C max.
Substrate Moisture Content
< 4 % pbw
Pot Life
| Temperature | Pot life | Open time |
| +10 °C | ~90 minutes (5 kg) | ~90 minutes |
| +23 °C | ~60 minutes (5 kg) | ~60 minutes |
| +35 °C | ~30 minutes (5 kg) | ~30 minutes |
The pot life begins when the resin and hardener are mixed. It is shorter at high temperatures and longer at low temperatures. The greater the quantity mixed, the shorter the pot life. To obtain longer workability at high temperatures, the mixed adhesive may be divided into portions. Another method is to chill components A+B before mixing them (not below +5 °C).
Consumption
See the "Method Statement for SikaWrap® manual dry application" Ref 850 41 02.
SUBSTRATE QUALITY
Substrate must be sound and of sufficient tensile strength to provide a minimum pull off strength of 1.0 N/mm2 or as per the requirements of the design specification.
See also the "Method Statement for SikaWrap® manual dry application" Ref 850 41 02.
SUBSTRATE PREPARATION
See the "Method Statement for SikaWrap® manual dry application" Ref 850 41 02.
MIXING
Pre-batched units:
Mix components A+B together for at least 3 minutes with a mixing spindle attached to a slow speed electric drill (max. 300 rpm) until the material becomes smooth in consistency and a uniform grey colour. Avoid aeration while mixing. Then, pour the whole mix into a clean container and stir again for approx. 1 more minute at low speed to keep air entrapment at a minimum. Mix only that quantity which can be used within its pot life.
CLEANING OF TOOLS
Clean all equipment immediately with Sika® Colma Cleaner or equivalent. Cured material can only be removed mechanically.
