SikaWrap®-430 G

SikaWrap®-430 G

Woven unidirectional glass fiber fabric, designed for structural strengthening applications as part of the Sika® strengthening system.

SikaWrap®-430 G is a unidirectional woven glass fiber fabric designed for installation using the dry or wet application process.

  • Manufactured with heat-set weft fibers to keep the fabric stable
  • Multifunctional fabric for use in many different strengthening applications
  • Flexible and accommodating to different surface planes and geometry (beams, columns, chimneys, piles, walls, soffits, silos etc.)
  • Low density for minimal additional weight
  • Cost effective in comparison to traditional strengthening techniques
  • Very low electrical conductivity
  • Complies to ACI 440.2R
Product Data Sheet Show all documents

Usage

Structural strengthening of reinforced concrete, masonry, brickwork and timber elements or structures, to increase flexural and shear loading capacity for:
  • Improved seismic performance of masonry walls
  • Increasing the strength and ductility of columns
  • Enabling changes in use / alterations and refurbishment
  • Correcting structural design and / or construction defects
  • Increasing resistance to seismic movement
  • Improving service life and durability
  • Structural upgrading to comply with current standards
  • Blast mitigation (accidents or terrorism)
  • Electrical environments that ask for non-conductive material


Advantages

  • Manufactured with heat-set weft fibers to keep the fabric stable
  • Multifunctional fabric for use in many different strengthening applications
  • Flexible and accommodating to different surface planes and geometry (beams, columns, chimneys, piles, walls, soffits, silos etc.)
  • Low density for minimal additional weight
  • Cost effective in comparison to traditional strengthening techniques
  • Very low electrical conductivity
  • Complies to ACI 440.2R

Packaging

Fabric length per roll

Fabric width

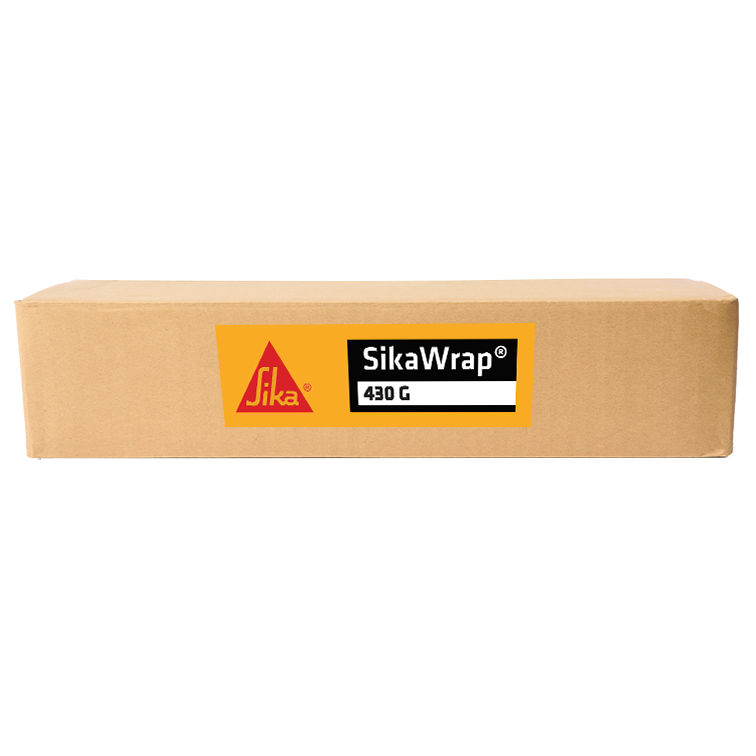

1 roll in cardboard box

80 m

500 mm

Product Details

Product Information

Construction

Fiber orientation

0° (unidirectional)

Warp

White glass fibres 98 %

Weft

White thermoplastic heat-set fibres 2 %

Fibre Type

E-glass fibers

Shelf Life

Unlimited shelf life if stored properly

Storage Conditions

Store in undamaged, original sealed packaging, in dry conditions at temperatures between +5 °C and +35 °C.
Protect from direct sunlight.

Dry Fibre Density

2.56 g/cm3

Dry Fibre Thickness

0.168 mm (based on total glass content)

Area Density

450 g/m2 + 10 g/m2 (glass fibers only)

Dry Fibre Tensile Strength

2 500 N/mm2 (measuerd on roving)

(EN 2561)

Dry Fibre Modulus of Elasticity in Tension

72 000 N/mm2(EN 2561)

Dry Fibre Elongation at Break

2.7 % (measured on roving)(EN 2561)
System information

System Structure

The system build-up and configuration as described must be fully complied with and may not be changed.

Concrete substrate adhesive primer

Sikadur®-330

Impregnating / laminating resin

Sikadur®-330 or Sikadur®-300

Structural strengthening fabric

SikaWrap®-430 G

For detailed information on Sikadur®-330 or Sikadur®-300, together with the resin and fabric application details, please refer to the Sikadur®-330 or Sikadur®-300 Product Data Sheet and the relevant Method Statement.
Technical Information

Laminate Nominal Thickness

0.168 mm

Laminate Nominal Cross Section

168 mm2 per m width

Laminate Tensile Strength

AverageCharacteristic
1 500 N/mm21 400 N/mm2

Laminate Modulus of Elasticity in Tension

AverageCharacteristic
70 kN/mm268 kN/mm2

* modification: sample with 50 mm
Values in the longitudinal direction of the fibres
Single layer, minimum 27 samples per test series

Laminate Elongation at Break in Tension

2.14 %

(based on EN 2561)
(based on ASTM 3039)

Tensile Resistance

Average

Characteristic

252 kN/m

235 kN/m

Tensile Stiffness

Average

Characteristic

11.8 MN/m

11.4 MN/m

11.8 kN/m per ‰ elongation

11.4 kN/m per ‰ elongation

Application

Consumption

Consumption

Dry application with Sikadur®-330

First layer including primer layer

1.2–1.6 kg/m2

Following layers

1.0 kg/m2

Wet application with Sikadur®-300, primer Sikadur®-330

Primer layer

1.3–1.8 kg/m2

Fabric layers

> 0.75 kg/m2

Please also refer to the relevant Method Statement for further information.


Application steps

SUBSTRATE QUALITY

Minimum substrate tensile strength: 1.0 N/mm2 or as specified in the strengthening design.
Please also refer to the relevant Method Statement for further information.

SUBSTRATE PREPARATION

Concrete must be cleaned and prepared to achieve a laitance and contaminant free, open textured surface.
Please also refer to the relevant Method Statement for further information.
