Sikafloor®-262 AS N
TWO-PART SMOOTH ELECTROSTATIC CONDUCTIVE EPOXY FLOOR COVERING
Sikafloor®-262 AS N is a two part, self-smoothing, coloured epoxy resin coating.
- Electrostatic conductive
- Good chemical and mechanical resistance
- Easy to clean
- Economical
- Liquid proof
- Semi-gloss finish
- Slip resistant surface possible
Usage
Sikafloor®-262 AS N is used as:- Decorative and protective electrostatic conductive self-smoothing system for concrete or cement screeds with normal up to medium heavy wear.
- Suitable as a wearing course in industries, such as automotive, electronics and pharmaceutical manufacturing, storage facilities and warehouses.
- Particularly suitable for areas with sensitive electronic equipment e.g. CNC machinery, computer rooms , aircraft maintenance sheds, battery-charging rooms and areas subjected to high explosion risk
Advantages
- Electrostatic conductive
- Good chemical and mechanical resistance
- Easy to clean
- Economical
- Liquid proof
- Semi-gloss finish
- Slip resistant surface possible
Packaging
Part A | 21 kg containers |
Part B | 4 kg containers |
Part A + B | 25 kg ready to mix units |
Colour
Resin - part A | coloured, liquid |
Hardener - part B | transparent, liquid |
Almost unlimited choice of colour shades.
Due to the nature of carbon fibres providing the conductivity, it is not possible to achieve exact colour matching. With very bright colours (such as yellow and orange), this effect is increased. Under direct sun light there may be some discoloration and colour variation, this has no influence on the function and performance of the coating.
Product Details
ENVIRONMENTAL INFORMATION
LEED Rating
Sikafloor®-262 AS N conforms to the requirements of LEED EQ Credit 4.2: Low-Emitting Materials: Paints & Coatings SCAQMD Method 304-91 VOC Content < 100 g/l.
APPROVALS / STANDARDS
- Self-smoothing, coloured epoxy resin coating according to EN 1504-2: 2004 and EN 13813, DoP 02 08 01 02 014 0 000007 2017, certified by Factory Production Control Body No. 0921, certificate 2017, and provided with the CE-mark
- Fire classification in accordance with EN 13501-1, Report-No. 2007-B-0181/17, MPA Dresden, Germany, May 2007
- Testing of electrostatic properties in accordance to IEC 61340, SP Institute, Test Report F900355:A, February 2009
- Testing of Paint Compatibility in acc. to BMW-Standard 09-09-132-5, Polymer Institute, Test Report P 5541, August 2008
- Varnishability test according to VW-standard PV 3.10.7 (paint wetting impairment substances (PWIS)) like silicones, HQM GmbH, Test Report 09-09-132-4, 09.2009
- Particle emission certificate Sikafloor®-262 AS N CSM Statement of Qualification - ISO 14644-1, class 4 - Report No. SI 1412-740, March 2015
- Outgassing emission certificate Sikafloor®-262 AS NF CR: CSM Statement of Qualification - ISO 14644-8, class -8.0 - Report No. SI 1412-740, March 2015
- Spark resistance in accordance with UFGS-09 97 23 of coating systems, Test report P 8625-E, Kiwa Polymer Institut
|
|
Chemical Base
Epoxy
Shelf Life
12 months from date of production
Storage Conditions
The packaging must be stored properly in original, unopened and undamaged sealed packaging, in dry conditions at temperatures between +5°C and +30°C.
Density
Part A | ~ 1.69 kg/l |
Part B | ~ 1.03 kg/l |
Mixed resin | ~ 1.53 kg/l |
| Filled resin 1 : 0.3 | ~ 1.69 kg/l |
All Density values at +23°C
Solid content by weight
~97%
Solid content by volume
~97%
Shore D Hardness
~77 (3 days / +23°C) | (DIN 53 505) |
Abrasion Resistance
Resin (filled with F34): 100 mg* (CS 10/1000/1000) (7 days / +23°C) | (DIN 53 109 (Taber Abraser Test)) |
Compressive Strength
Resin: ~ 80 N/mm² (filled 1:0.3 with F34) (28 days / +23°C) | (EN 196-1) |
Tensile Strength in Flexure
Resin: ~ 40 N/mm² (filled 1:0.3 with F34*) (28 days / +23°C) | (EN 196-1) |
Tensile Adhesion Strength
> 1.5 N/mm² (failure in concrete) | (ISO 4624) |
Chemical Resistance
Resistant to many chemicals. Please contact Sika technical service.
Thermal Resistance
Exposure* | Dry heat |
Permanent | +50°C |
Short-term max. 7 d | +80°C |
| Short-term max. 2 h | +100°C |
Short-term moist/wet heat* up to +80°C where exposure is only occasional (i.e. during steam cleaning etc.)
*No simultaneous chemical and mechanical exposure.
Electrostatic Behaviour
Resistance to ground1) | Rg < 109 Ω |
Typical average resistance to ground2) | Rg ≤ 106 Ω |
1) This product fulfils the requirements of ATEX 137
2) Readings may vary, depending on ambient conditions (i.e. temperature, humidity) and measurement equipment.
Application
Mixing Ratio
Part A : part B = 84 : 16 (by weight)
Ambient Air Temperature
+10°C min. / +30°C max.
Relative Air Humidity
80% r.h. max.
Dew Point
Beware of condensation!
The substrate and uncured floor must be at least 3°C above dew point to reduce the risk of condensation or blooming on the floor finish.
Substrate Temperature
+10°C min. / +30°C max.
Substrate Moisture Content
< 4% pbw moisture content.
Test method: Sika®-Tramex meter, CM - measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).
Pot Life
Temperatures | Time |
+10°C | ~ 40 minutes |
+20°C | ~ 25 minutes |
| +30°C | ~ 15 minutes |
Applied Product Ready for Use
| Temperature | Foot traffic | Light traffic | Full cure |
| +10°C | ~ 30 hours | ~ 5 days | ~ 10 days |
| +20°C | ~ 24 hours | ~ 3 days | ~ 7 days |
| +30°C | ~ 16 hours | ~ 2 days | ~ 5 days |
Note: Times are approximate and will be affected by changing ambient conditions.
Consumption
| Coating System | Product | Consumption |
| Primer | Sikafloor®-161 HC | 0.3 - 0.5 kg/m² |
| Levelling (optional) | Sikafloor®-161 mortar | Refer to PDS Sikafloor®-161 HC |

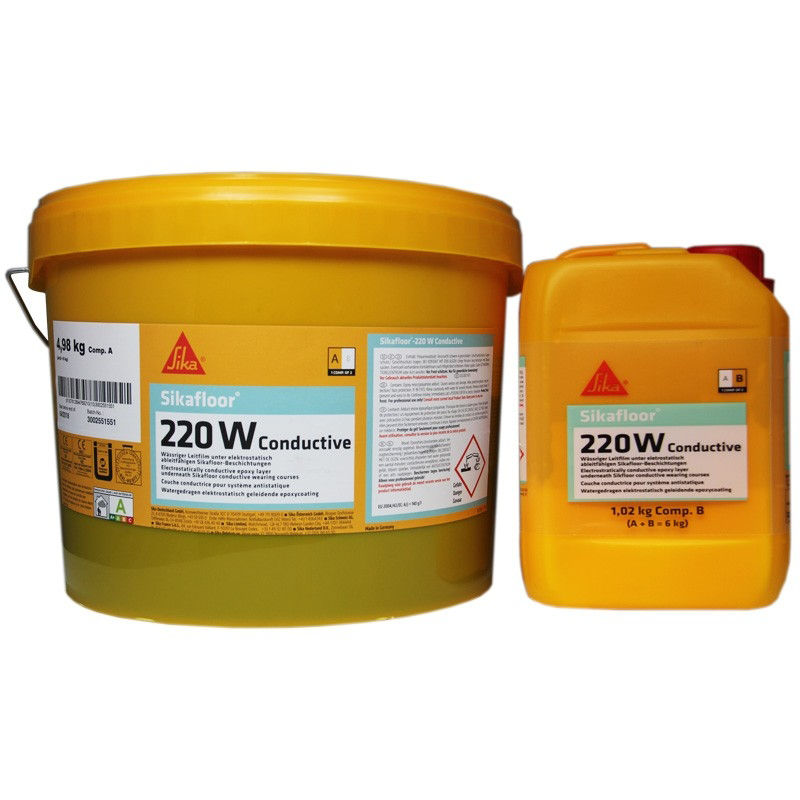

| Conductive Coat | Sikafloor -220 W Conductive | 0.08 - 0.10 kg/m² |
| Wearing course smooth (Film thickness ~ 1.5 mm) | Sikafloor®-262 AS N filled with Sikadur 505Q | Maximum 2.5 kg/m² Binder + quartz sand 1 : 0.2 pbw (2.0 + 0.5 kg/m²) to 1 : 0.3 pbw (1.9 + 0.6 kg/m²) |
| Wearing course textured (Film thickness ~ 0.5 mm) | Sikafloor®-262 AS N + Extender T + Thinner C | 0.75 kg/m² 1.25 % (by weight) 2% (by weight) |
.
These figures are theoretical and does not allow for any additional material required
due to surface porosity, surface profile, variations in level and wastage etc
.
Substrate Quality
The concrete substrate must be sound and of sufficient compressive strength (minimum 25 N/mm2) with a minimum pull off strength of 1.5 N/mm2. The substrate must be clean, dry and free of all contaminants such as dirt, oil, grease, coatings and surface treatments, etc. If in doubt apply a test area first.
Substrate Preparation
- ? Concrete substrates must be prepared mechanically using abrasive blast cleaning or scarifying equipment to remove cement laitance and achieve a profiled open textured surface.
- ? Weak concrete must be removed and surface defects such as blowholes and voids must be fully exposed.
- ? Repairs to substrate, filling of blowholes/voids and surface levelling can be carried out using appropriate products from the Sikafloor®, Sikadur® and Sikagard® range of materials.
- ? The concrete or screed substrate has to be primed or levelled up in order to achieve an even surface. Unevenness influences the film thickness and thus the conductivity of the following layer.
- ? High spots must be removed by e.g. grinding.
- ? All dust, loose and friable material must be completely removed from all surfaces before application of the product, preferably by brush and/or vacuum.
MIXING
Prior to mixing, stir part A mechanically. When all of part B has been added to part A, mix continuously for 2 minutes until a uniform mix has been achieved. When parts A and B have been mixed, add Sikafloor®-Filler 1 or the quartz sand 0.1 - 0.3 mm and mix for a further 2 minutes until a uniform mix has been achieved. To ensure thorough mixing pour materials into another container and mix again to achieve a consistent mix. Over mixing must be avoided to minimize air entrainment. Sikafloor®-262 AS N must be thoroughly mixed using a low speed electric stirrer (300 - 400 rpm) or other suitable equipment.
APPLICATION
Sikafloor®-262 AS N is poured, spread evenly by means of a serrated trowel e.g. Large-Surface Scraper No. 656, Toothed blades No. 25 (www.polyplan.com). After spreading the material evenly, turn the serrated trowel and smooth the surface in order to achieve an aesthetically higher grade of finish. Roll immediately (within max. 10 minutes of application) in two directions with a steel spiked roller to ensure even thickness and to remove entrapped air. To obtain the highest level of aesthetic finish, spike roll in two directions at a 90 degree angle, passing only once in each direction.
CLEANING OF TOOLS
Clean all tools and application equipment with Thinner C immediately after use. Hardened and/or cured material can only be removed mechanically.
