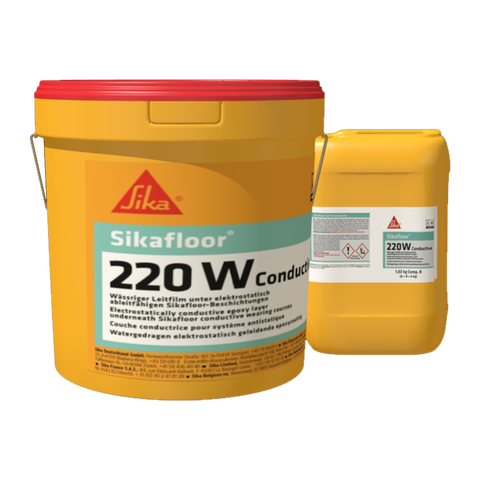

Sikafloor®-220 W Conductive

Sikafloor®-220 W Conductive

TWO-PART ELECTROSTATIC CONDUCTIVE EPOXY PRIMER

Sikafloor®-220 W Conductive is a two part, water dispersed, epoxy resin with a high electrostatic conductivity. Sikafloor®-220 W Conductive is a part of different systems. For more details please refer to the System Data Sheet mentioned under the parapraph SYSTEM INFORMATION.

  • Highly electrostatic conductive
  • Easy application
  • Economical in use
Product Data Sheet Show all documents

Usage

Sikafloor®-220 W Conductive shall be used by professional applicators only.
  • Sikafloor®-220 W Conductive must be applied as conductive primer underneath all Sikafloor® conductive wearing courses, such as Sikafloor®-262 AS N, 262 AS N Thixo, -235 ESD, -269 ECF CR, -381 ECF and -390 ECF.
  • Electrostatic conductive coatings on concrete and cementitious screeds for different types of industrial use.


Advantages

  • Highly electrostatic conductive
  • Easy application
  • Economical in use

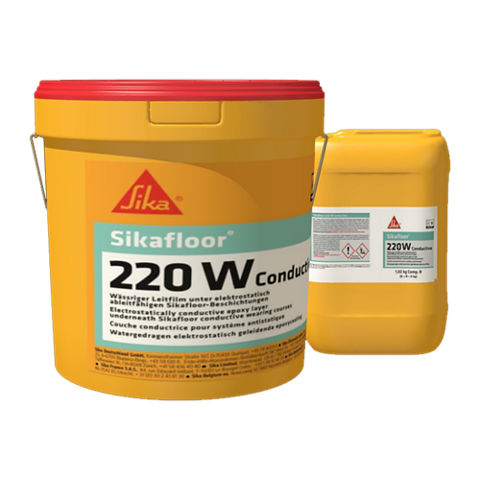

Packaging

Part A

4,98 kg containers

Part B

1,02 kg containers

Part A + B

6 kg unipacks

Colour

Resin - part A

black, liquid

Hardener - part B

white, liquid

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

  • Conformity with LEED v2009 IEQc 4.2: Low-Emitting Materials - Paints and Coatings

APPROVALS / STANDARDS

  • CE Marking and Declaration of Performance to EN 1504-2 - Surface protection product for concrete - Coating
  • CE Marking and Declaration of Performance to EN 13813 - Resin screed material for internal use in buildings
  • Varnishability test PV 3.10.7, Sikafloor®-220 W Conductive, HQM, Test report No. 09-09-132-5
Product Information

Chemical Base

Waterborne epoxy

Shelf Life

12 months from date of production.

Storage Conditions

The packaging must be stored properly in original, unopened and undamaged sealed packaging, in dry conditions at temperatures between +5 °C and +30 °C. Part A and part B must be protected from frost.

Density

Part A

1,15 kg/l

Part B

1,06 kg/l

Mixed Resin

1,04 kg/l

All density values at +23 °C.

Solid content by weight

~44 %

Solid content by volume

~34 %
Technical Information

Electrostatic Behaviour

Typical average resistance to ground: Rg ≤ 104 Ω

(DIN EN 1081)

* Readings may vary, depending on ambient conditions (i.e. temperature, humidity) and measurement equipment.

Application

Application Information

Mixing Ratio

Part A : part B = 83 : 17 (by weight)

Ambient Air Temperature

+10 °C min. / +30 °C max.

Relative Air Humidity

75 % r.h. max.

Dew Point

Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.

Substrate Temperature

+10 °C min. / +30 °C max.

Substrate Moisture Content

< 4 % moisture content. Test method: Sika®-Tramex meter, CM - measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).

Pot Life

Temperatures

Time

+10 °C

~120 minutes

+20 °C

~90 minutes

+30 °C~30 minutes

Curing Time

Before overcoating Sikafloor®-220 W Conductive allow:

Substrate temperature

Minimum

Maximum

+10 °C

26 hours7 days

+20 °C

17 hours5 days
+30 °C12 hours4 days

Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.


Consumption

Consumption

~0,08–0,10 kg/m²

These figures are theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level and wastage etc. For detailed info, please refer to the system related System Data Sheets.

Coating System

Product

Consumption

Primer

Sikafloor®-156 or Sikafloor®-161 HC

0.3 - 0.5 kg/m2

Levelling (optional)

Sikafloor®-156 mortar or Sikafloor®-161 HC

Refer to PDS of Sikafloor®-156 or Sikafloor®-161 HC

Conductive primerSikafloor®-220 W Conductive0.08 - 0.10 kg/m2
Wearing courseSikafloor®-262 AS N~ 2.5 kg/m2
Sikafloor®-262 AS N Thixo~ 0.75 kg/m2
Sikafloor®-235 ESDMaximum 2.5 kg/m2
Sikafloor®-266 ECF CRMaximum 2.5 kg/m2
Sikafloor®-269 ECF CRMaximum 2.0 kg/m2
Sikafloor®-381 ECF~ 2.5 kg/m2
Sikafloor®-390 ECF~ 2.5 kg/m2
Conductive seal coat (optional)Sikafloor®-230 ESD TopCoat~ 0.15 kg/m2

These figures are theoretical and does not allow for any additional material due to surface porosity, surface profile ,variations in level and wastage etc.
Application steps

EQUIPMENT

Mixing Tools
Sikafloor®-220 W Conductive must be thoroughly mixed using a low speed electric stirrer (300–400 rpm) or other suitable equipment.

MIXING

Prior to mixing, stir part A mechanically. When all of part B has been added to part A, mix continuously for 2 minutes until a uniform mix has been achieved. To ensure thorough mixing pour materials into another container and mix again to achieve a consistent mix. Over mixing must be avoided to minimize air entrainment.

APPLICATION

Application of Sikafloor® conductive primer:
Uniformly spread 1 × Sikafloor®-220 W Conductive using a short pile nylon roller (12 mm).

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened and/or cured material can only be removed mechanically.
